Self Supporting Towers

Address:

2765 S. Temperance Ave.
Fowler, CA 93625

Phone:

(559) 834-4300

Fax:

559-834-4377

T-26 Tower

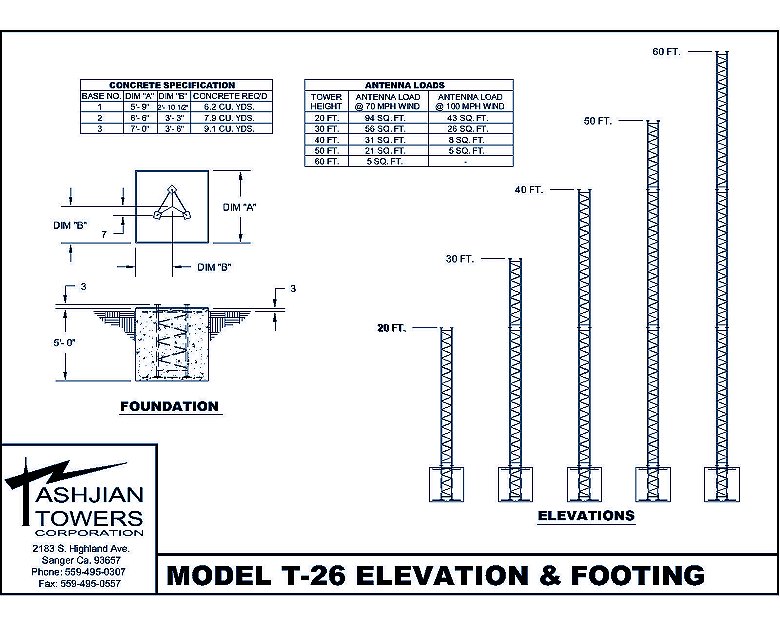

T-26 Elevation

View Elevation

T-26 Layout

View Layout

T-36 Tower

T-36 Elevation

View Elevation

T-36 Layout

View Layout

T-48 Tower

T-48 Elevation

View Elevation

T-48 Layout

View Layout

T-20 Tower

T-20 Elevation

View Elevation

T-20 Layout

View Layout

TKD Tower Lineup

TKD Towers

View Towers

TKD Sections

View Sections

Commercial Tower Price List

Description Part No. Weight Price
MODEL T-15 SECTIONS
T-15 Standard 10′ Section 115-00301 52 $261.00
T-15 Top Plate 115-00303 10 $127.00
T-15 Flat Base 115-00304 18 $150.00
T-15 Concrete Base 115-00305 20 $159.00
T-15 Tapered Base Mount 115-00324 46 $431.00
T-15 Tilt Base 115-00422 27 $545.00
T-15 Mast Anchor Plate 115-00307 7 $173.00
T-15 CDR Plate 115-00308 6 $173.00
T-15 Guy Bracket 115-00325 8 $207.00
T-15 Guy Bracket w/ Torque Bar 115-00326 14 $224.00
T-15 Torque Arm Assembly 115-00311 46 $317.00
T-15 2″ Dish Mount 115-00327 26 $183.00
T-15 4″ Dish Mount 115-00375 48 $378.00
T-15 Erection Fixture 115-00312 40 $589.00
MODEL T-20 SECTIONS
T-20-120, 5′ Section 220-00338 65 $387.00
T-20-120, 10′ Section 220-00504 112 $602.00
T-20-120, 20′ Section 220-00503 207 $1,019.00
T-20-180, 20′ Section Heavy 220-00505 313 $1,470.00
T-20-180, 20′ Section Heavy (G) 220-00577 335 $1,607.00
T-20 Concrete Base Mount (G) 220-00516 60 $443.00
T-20 Flat Base Mount 220-00513 75 $357.00
T-20 Tapered Base Mount 220-00323 122 $965.00
T-20 Top Cap 220-00512 2 $21.00
T-20 Top 1/2″ Plate 220-00517 42 $230.00
T-20 Beacon 3/8″ Plate 220-00305 39 $200.00
T-20 Mast Anchor Plate 220-00306 18 $173.00
T-20 Guy Bracket 220-00308 33 $222.00
T-20 Guy Bracket w/ Torque Bars 220-00511 41 $311.00
T-20 Torque Arm Assembly 220-00310 89 $461.00
T-20 Mast Flange 220-00528 18 $106.00
T-20 Dish Mount 220-00312 102 $523.00
MODEL T-20 GUY TOWER KITS
T-20 40′ Guy Tower Kit 220-00554 622 $3,728.00
T-20 50′ Guy Tower Kit 220-00555 734 $4,278.00
T-20 60′ Guy Tower Kit 220-00556 862 $5,188.00
T-20 70′ Guy Tower Kit 220-00557 974 $5,765.00
T-20 80′ Guy Tower Kit 220-00558 1069 $5,215.00
T-20 90′ Guy Tower Kit 220-00559 1181 $6,775.00
T-20 100′ Guy Tower Kit 220-00560 1378 $8,098.00
T-20 110′ Guy Tower Kit 220-00561 1490 $8,676.00
T-20 120′ Guy Tower Kit 220-00562 1585 $9,153.00
T-20 130′ Guy Tower Kit 220-00563 1697 $9,713.00
T-20 140′ Guy Tower Kit 220-00564 1825 $10,778.00
T-20 150′ Guy Tower Kit 220-00565 1937 $11,384.00
T-20 160′ Guy Tower Kit 220-00566 2032 $11,843.00
T-20 170′ Guy Tower Kit 220-00567 2177 $13,110.00
T-20 180′ Guy Tower Kit 220-00568 2272 $13,561.00
T-20 190′ Guy Tower Kit 220-00569 2384 $14,192.00
T-20 200′ Guy Tower Kit 220-00570 2479 $14,661.00
T-20 210′ Guy Tower Kit 220-00571 2678 $16,589.00
T-20 220′ Guy Tower Kit 220-00572 2773 $17,076.00
MODEL T-20 SELF SUPPORTING TOWER KIT
T-20 10′ Self Supporting Tower Kit 220-00574 171 $941.00
T-20 20′ Self Supporting Tower Kit 220-00547 266 $1,463.00
T-20 30′ Self Supporting Tower Kit 220-00575 450 $2,506.00
T-20 40′ Self Supporting Tower Kit 220-00548 550 $3,025.00
MODEL T-26 SECTIONS
T-26 10′ Section .120 Wall 226-00404 191 $855.00
T-26 20′ Section .120 Wall 226-00402 337 $1,595.00
T-26 20′ Section .120 Wall (G) 226-00359 340 $1,773.00
T-26 10′ Section .180 Wall 226-00403 228 $1,261.00
T-26 20′ Section .180 Wall 226-00401 411 $2,275.00
T-26 10′ Section .250 Wall 226-00406 261 $1,569.00
T-26 20′ Section .250 Wall 226-00405 477 $2,945.00
T-26 Concrete Base 226-00307 117 $765.00
T-26 Flat Base Mount 226-00426 156 $508.00
T-26 Tapered Base Mount 226-00322 210 $1,133.00
T-26 Top Plate 226-00311 64 $269.00
T-26 Top Cap 226-00308 4 $21.00
T-26 Beacon Plate 226-00418 64 $269.00
T-26 Guy Bracket 226-00317 35 $192.00
T-26 Guy Brackets w/Torque Bars 226-00319 50 $279.00
T-26 Torque Arm Assembly 226-00408 109 $549.00
T-26 5′ Standard Mast Flange 226-00409 18 $164.00
T-26 Dish Mount 226-00414 113 $554.00
MODEL T-26-250 SELF SUPPORTING TOWER KITS
T-26-250 20′ Self Supporting Tower Kit 226-00510 628 $3,406.00
T-26-250 30′ Self Supporting Tower Kit 226-00511 819 $4,467.00
T-26-250 40′ Self Supporting Tower Kit 226-00512 1053 $5,776.00
T-26-250 50′ Self Supporting Tower Kit 226-00513 1244 $6,862.00
T-26-250 60′ Self Supporting Tower Kit 226-00514 1390 $7,713.00
MODEL T-36 SECTIONS
T-36 Standard 9′ Section 236-00402 215 $1,011.00
T-36X, X-Braced 9′ Section 236-00418 262 $1,110.00
T-36H, Heavy Duty 9′ Section 236-00404 296 $1,500.00
T-36HX, Heavy Duty, X-Braced 9′ Section 236-00432 317 $1,500.00
T-36EH, Extra Heavy Duty 9′ Section 236-00407 348 $1,702.00
T-36EHX, Extra Heavy Duty, X-Braced 9′ Section 236-00433 373 $1,778.00
T-36 Standard 20′ Section 236-00401 425 $2,012.00
T-36 X-Braced 20′ Section 236-00411 510 $2,412.00
T-36 Heavy Duty 20′ Section 236-00401-2 607 $2,871.00
T-36HX, Heavy Duty, X-Braced 20′ Section 236-00412 632 $2,990.00
T-36EH, Extra Heavy Duty 20′ Section 236-00401-3 722 $3,416.00
T-36EHX, Extra Heavy, X-Braced 20′ Section 236-00415 744 $3,519.00
T-36EHX (G), Extra Heavy X-Braced 20′ Section 236-00424 758 $3,550.00
T-36 Concrete Base 236-00422 193 $950.00
T-36 Tapered Base Mount 236-00314 404 $1,998.00
T-36 Top Caps 236-00315 5 $29.00
T-36 Top Plate 236-00438 40 $346.00
T-36 Beacon Plate 236-00434 32 $298.00
T-36 Guy Bracket 236-00306 90 $447.00
T-36 Torque Arm Assembly 236-00427 447 $2,217.00
T-36 Dish Mount 236-00322 168 $830.00
T-36 5′ Mast Flange 236-00426 21 $220.00
MODEL T-36 HEAVY SELF SUPPORTING TOWER KITS
T-36 20′ Heavy Self Supporting Tower Kit 236-00521 998 $4,803.00
T-36 30′ Heavy Self Supporting Tower Kit 236-00522 1296 $6,236.00
T-36 40′ Heavy Self Supporting Tower Kit 236-00523 1643 $7,906.00
T-36 50′ Heavy Self Supporting Tower Kit 236-00524 2054 $9,719.00
T-36 60′ Heavy Self Supporting Tower Kit 236-00525 2401 $11,359.00
T-36 70′ Heavy Self Supporting Tower Kit 236-00526 2624 $12,414.00
MODEL T-48 SECTIONS
T-48 Standard 9′ Section 248-00402 338 $1,599.00
T-48X, X-Braced 9′ Section 248-00409 377 $1,814.00
T-48H, Heavy Duty 9′ Section 248-00404 387 $1,893.00
T-48HX, Heavy Duty, X-Braced 9′ Section 248-00411 426 $2,015.00
T-48 EH, Extra Heavy Duty, 9′ Section 248-00407 462 $2,223.00
T-48-EHX, Extra Heavy Duty, X-Braced 9′ Section 248-00413 500 $2,436.00
T-48 Standard 20′ Section 248-00401 668 $3,160.00
T-48X, X-Braced 20′ Section 248-00408 763 $3,609.00
T-48H, Heavy Duty 20′ Section 248-00403 778 $8,284.00
T-48HX, Heavy Duty, X-Braced 20′ Section 248-00410 874 $4,135.00
T-48EH, Extra Heavy Duty 20′ Section 248-00406 943 $4,613,.00
T-48EHX, Extra-Heavy Duty, X-Braced 20′ Section 248-00412 1039 $4,815.00
T-48EHX, (G), Extra-Heavy Duty, X-Braced 20′ Section 248-00418 1048 $4,926.00
T-48 Concrete Base 248-00405 253 $1,357.00
T-48 Tapered Base Mount 248-00313 619 $3,114.00
T-48 Top Cap 248-00417 7 $39.00
T-48 Beacon Plate 248-00431 36 $298.00
T-48 Guy Bracket 248-00428 104 $554.00
T-48 Torque Arm Assembly 248-00420 657 $3,855.00
T-48 Dish Mount 248-00309 184 $910.00
T-48 5′ Mast Flange 248-00416 25 $232.00
MODEL T-48 HEAVY SELF SUPPORTING TOWER KITS
T-48 20′ Heavy Self Supporting Tower Kit 248-00478 972 $5,346.00
T-48 30′ Heavy Self Supporting Tower Kit 248-00479 1555 $8,553.00
T-48 40′ Heavy Self Supporting Tower Kit 248-00480 1941 $10,670.00
T-48 50′ Heavy Self Supporting Tower Kit 248-00481 2603 $14,322.00
T-48 60′ Heavy Self Supporting Tower Kit 248-00482 2989 $16,676.00
T-48 70′ Heavy Self Supporting Tower Kit 248-00483 3477 $19,250.00
T-48 80′ Heavy Self Supporting Tower Kit 248-00484 3863 $21,450.00
T-48 90′ Heavy Self Supporting Tower Kit 248-00485 4477 $24,750.00
MODEL TKD-301 SECTIONS
TKD-301 Standard Section 150-30100 526 $2,320.00
TKD-302 SECTIONS
TKD-302X Standard Section Heavy 150-30255 773 $3,421.00
TKD-302SN 10′ Straight & Narrow Section 150-30230 354 $1,942.00
TKD-302SN 20′ Straight & Narrow Section 150-30273-01 644 $2,841.00
TKD-303 SECTIONS
TKD-303 Standard Section 150-30300 1020 $4,449.00
TKD-304 SECTIONS
TKD-304X Standard Section Heavy 150-30430 1283 $7,717.00
TKD-304X Bottom Section Heavy 150-30416 1283 $7,717.00
TKD-304SN 10′ Straight and Narrow Section 150-30472 730 $3,220.00
TKD-304SN 20′ Straight and Narrow Section 150-30481 1180 $5,205.00
TKD-305 SECTIONS
TKD-305 Standard Section 150-30500 1610 $7,101.00
TKD-305 Bottom Section 150-30515 1610 $7,101.00
TKD-305X Standard Section Heavy 150-30552 1875 $8,207.00
TKD-306 SECTIONS
TKD-306X Standard Section Heavy 150-30647 2280 $10,056.00
TKD-307 SECTIONS
TKD-307X Standard Section Heavy 150-30723 2762 $12,181.00
TKD-308 SECTIONS
TKD-308X Standard Section Heavy 150-30801 3002 $13,240.00
TKD-309 SECTIONS
TKD-309X Standard Section Heavy 150-30901 4830 $20,529.00
TKD-310 SECTIONS
TKD-310X Standard Section Heavy 150-31006-2 5068 $21,549.00
MODEL TKD-401 SECTIONS
TKD-401 Standard Section 150-30147 701 $3,374.00
TKD-402 SECTIONS
TKD-402 Standard Section 150-30262 917 $4,412.00
TKD-402SN 10′ Section 150-30280 472 $2,461.00
TKD-402SN 20′ Section 150-30277 859 $4,408.00
TKD-403 SECTIONS
TKD-403 Standard Section 150-30364 1360 $7,718.00
TKD-403SN 10′ Section 150-30342 649 $6,419.00
TKD-403SN 20′ Section 150-30332 1224 $6,053.00
TKD-404 SECTIONS
TKD-404X Standard Section Heavy 150-30461 1711 $8,095.00
TKD-405 SECTIONS
TKD-405X Standard Section Heavy 150-30557 2500 $11,784.00
TKD-406 SECTIONS
TKD-406X Standard Section Heavy 150-30651 3040 $13,896.00
TKD-407 SECTIONS
TKD-407X Standard Section Heavy 150-30729 3683 $16,834.00
TKD-408 SECTIONS
TKD-408X Standard Section Heavy 150-30729-2 4003 $17,644.00
TKD-409 SECTIONS
TKD-409X Standard Section Heavy 150-30729-3 6440 $27,371.00
TKD-410 SECTIONS
TKD-410X Standard Section Heavy 150-30729-4 6757 $29,801.00
MODEL TKD SELF SUPPORTING TOWER KITS
TKD-303 (L) 40′ Self Supporting Tower Kit 150-85019 2463 $12,245.00
TKD-304 (M) 40′ Self Supporting Tower Kit 150-85020 2945 $14,642.00
TKD-303 (L) 60′ Self Supporting Tower Kit 150-85021 2556 $12,707.00
TKD-304X (M) 60′ Self Supporting Tower Kit 150-85022 3151 $15,666.00
TKD-304X (L) 80′ Self Supporting Tower Kit 150-85023 3839 $19,086.00
TKD-305 (M) 80′ Self Supporting Tower Kit 150-85024 4761 $23,671.00
TKD-305 (L) 100′ Self Supporting Tower Kit 150-85025 5449 $26,654.00
TKD-306X (M) 100′ Self Supporting Tower Kit 150-85026 7041 $34,442.00
TKD-306X (L) 120′ Self Supporting Tower Kit 150-85027 7729 $37,807.00
TKD-307 (M) 120′ Self Supporting Tower Kit 150-85028 9539 $46,660.00
TKD-307 (L) 140′ Self Supporting Tower Kit 150-85029 10227 $49,370.00
TKD-308X (M) 140′ Self Supporting Tower Kit 150-85030 13391 $64,430.00
TKD-308X (L) 160′ Self Supporting Tower Kit 150-85031 13319 $65,150.00
TKD-309 180′ Self Supporting Tower Kit 150-85032 17587 $86,029.00
TKD-310 200′ Self Supporting Tower Kit 150-85033 22066 $121,000.00
